Ⅰ.What is a control arm? Why is it one of the most important components in the suspension system?
The Control Arm/Suspension Arm is one of the core structures connecting the vehicle body and the wheels and is a key component of the Suspension System.
Its main functions include:
- Keep the geometric angles of the wheels stable
- Connect the shock absorber, the steering system and the chassis
- Absorb road surface vibration and impact
- It enhances driving stability and comfort
In a nutshell, the control arm determines whether the vehicle is "stable". If it breaks down, the overall driving quality of the vehicle will decline.
Ⅱ. What types of control arms are there? What are the differences in structure?
The structures of different vehicle models vary, but the control arms of most vehicles can be classified as:
1.Lower Control Arm
It has the greatest function, can withstand the impact of major road surfaces, and is the type that is most frequently replaced.
2. Upper Control Arm
Double wishbone suspension is commonly seen in SUVs, pickup trucks and off-road vehicles.
3. Type A control arm/Type L control arm
It is classified according to the different geometric shapes of vehicle design.
4. Integrated vs detachable ball head design
Integrated→ OEM common
The Ball Joint is detachable (Replaceable Ball Joint) → suitable for the economical maintenance market

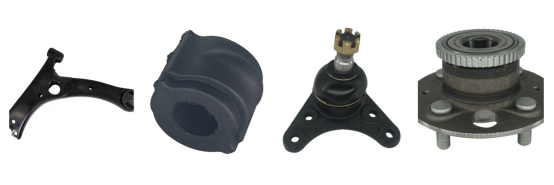

Ⅲ. What components does the control arm consist of?
A complete control arm is usually composed of:
Arm Body: Made of steel or aluminium
Rubber Bushing: Absorbs vibration
Ball Joint: Connects the steering system
Bracket & Weld Points
Among them, the most vulnerable parts are the bushings and the ball heads.
Ⅳ. Comparison of Common Materials for Control Arms: Which One Is Better?
|
Material type
|
Main features
|
Applicable vehicle models
|
|
Forged Steel
|
High strength, good durability and moderate cost
|
Ordinary family cars/commercial vehicles
|
|
Stamped Steel
|
It has a low cost, but its strength is rather average
|
Mid-to-low-end vehicle models
|
|
Aluminum alloy
|
Lightweight and highly resistant to corrosion
|
Luxury brands, performance cars
|
|
Hybrid Design
|
Steel main body + rubber/resin components
|
Trends in new energy vehicles
|
Aluminum alloy and high wear-resistant ball heads will become the mainstream upgrade direction.
V. Is the control arm prone to damage? What are the common causes of damage?
The control arm is a component with a relatively high wear rate among chassis parts, especially under the following conditions:
Poor road conditions (such as in the Middle East, Latin America, Africa and other regions), prolonged bumpy ride can easily damage the ball joints and bushings.
2. Heavy vehicles or intense driving cause frequent suspension stretching, leading to metal fatigue.
3. Corrosion issue (in saline-alkali areas), aluminum materials have better corrosion resistance.
4. Poor installation quality or the use of inferior accessories leads to a shortened lifespan.
Vi. FAQs of Control Arms
1.Is the control arm and the ball joint integrated?
Depending on the model, there are two designs: "integrated" and "detachable".
2. Do control arms need to be replaced in pairs?
It is recommended to replace them in pairs to ensure driving stability and consistency in geometric angles.
3. Is four-wheel alignment necessary after replacing the control arm?
Yes, it must be done; otherwise, it may veer off course or the tires may wear out more rapidly.
4. Can the Control Arm Bushing be replaced separately if it is broken?
Some models can be replaced separately, while others require the replacement of the entire control arm.
5. How long can the urban driving control arm be used?
It is generally 60,000 to 100,000 kilometers, depending on road conditions and driving habits.
At present, control arms with high durability, high precision and high quality are becoming one of the core components for long-term vehicle maintenance. Through dual upgrades in the manufacturing and supply chain ends, Longwind Group is expected to become the preferred partner for global wholesalers and brand owners in the control arm category.
